Size: Diameter 2.5‘‘, 4‘‘, 8‘‘
Length: 1-7pcs
Working pressure: 300PSI -1000PSI
Opening: Side port and end port.
(1) Applicable membrane components: DOW, GE, Koch, Hydranautics, Saehan, Toray, TRISEP and other standard membrane components;
(2) 100% pressure vessels passed the 1.2 – 1.5 times water pressure test, 100,000 times fatigue test,6 times design pressure burst test;
(3) Suitable temperature range: -7℃—49℃;
(4) Working medium PH value: 3-11;
(5) Cleaning medium PH value: 2-12.
8’’ side port FRP pressure vessel
8” end port FRP pressure vessel
4” side port FRP pressure vessel

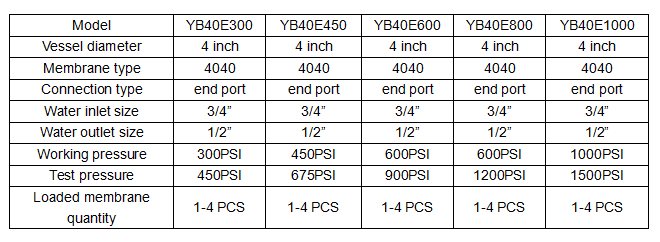

4” end port FRP pressure vessel
