YB-SWRO-5000LPD
|
|||
|
*Testing flow rate
|
400L/H
|
Recovery rate
|
15-20%
|
|
*Suggested to use flow rate
|
250L/H
|
Power
|
4.6KW
|
|
Applicable power
|
AC380V 50HZ
|
Working temperature
|
5-45℃
|
|
Inlet water TDS
|
<45000ppm
|
Freshwater TDS
|
<600ppm
|
|
Design pressure
|
1000PSI
|
Working pressure
|
≤850PSI
|
|
Inlet water residual chlorine
|
<0.1ppm
|
Inlet water SDI
|
<5
|
|
Inlet water turbidity
|
<1
|
Inlet water PH
|
Neutral
|

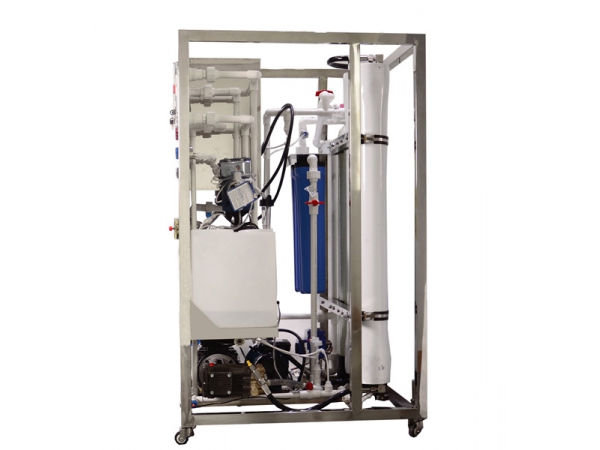

YB-SWRO series portable seawater desalination machine product introduction
•As the content of salt in the seawater is too high, that can not be used directly, there are mainly two methods to desalinate seawater, distillation and reverse osmosis. Distillation is mainly used for super-huge type seawater desalination and heat energy rich area, energy consumption is very high. Reverse Osmosis is very widely applicable, low energy consumption and high desalination rate, so it‘s widely used.
•We use the international best quality of seawater RO membrane. The membrane‘s salt removing rate is very high, with stable performance, safe and reliable. The HP pump we used is the international brand which is specialized in seawater desalination, with high and low pressure protection device, ensure the safety and reliable of the equipment. The treated water quality meets the national life drinking water quality standards (GB5749-85), do not add any chemicals, can be used for direct drinking, fresh and sweet.
•For the portable use, reliable water, cheap price etc., after a long time of design and practice, we integrate the reliable technology and advanced technology, make our equipment stand out! From here on, you will experience the different use feelings!
YB-SWRO-5000LPD Portable Seawater Desalination Machine Advantages & Characteristics
|
|
1. Auto operating by pressing one key, easy and convenient to operate. 2. Auto flushing. 3. Touch screen + PLC automatic control, more integrated and convenient, real-time running process, more vivid and visualized. 4. Auto dosing, reducing the fouling of the seawater RO membrane. 5. The machine sets up high and low voltage protection, to prevent the machine from break downing. 6. Device fault alarm and indication is convenient for identifying the causes and maintenance quickly. 7. Kinds of flow and pressure testing instruments, monitoring the device operating state at any time. 8. Online conductivity meter, monitoring the output water quality at any time. |
|
1. Fully polished stainless steel frame, safe and fastness, elegant appearance. 2. 3. High quality quartz sand filter, can remove the large impurities, alga and so on, and can be manual cleaning independently. 4. All of the high pressure fittings adopt SS316 material, safe and corrosion resistant. 5. Low pressure fittings adopt high quality UVPC material. 6. Customized end side port FRP membrane housing, simple connection, safe and reliable. |
|
|
|
1. SEKO dosing pump, accurate dosing, reducing the fouling of the seawater RO membrane Metering pump with the power switch, convenient to start and stop. The power cord and dosing tank’s level signal lines use the navigation plug connection, convenient disassembly of metering pump. 2. High quality SS316L high pressure pump, safe and corrosion resistant, running more stable. |
YB series portable seawater desalination machine also has modern design and high integration etc. characteristics.
YB series portable seawater desalination machine, volume 90cm L * 95cm W * 140cm H, only weight 200-250 KG, moveable design, easy to move and assemble.
YB series portable seawater desalination machine has most matching accessories, can directly use after connect with water and power, easy operation.
YB series portable seawater desalination machine has a wide range of power supply, can be connected with common household AC power, gasoline/diesel generator, also can be connected with solar and wind etc. environmental energy.
1. Can be used for ships, fishing boats, yachts, marine, navy drinking water use
2. Can be used for island family, island restaurant, seaside villa, resort drinking water use.
3. Can be used for salty alkali lake drinking water use.
4. Can be used for desert underground water.
5. Offshore operation platform and floating buildings.
YOUBER Portable Seawater Desalination Machine Process Flow
YB-SWRO-5000LPD portable seawater desalination machine Technical parameter
|
YB-SWRO-5000LPD |
|||
|
*Testing flow rate |
400L/H |
Recovery rate |
15-20% |
|
*Suggested to use flow rate |
250L/H |
Power |
4.6KW |
|
Applicable power |
AC380V 50HZ |
Working temperature |
5-45℃ |
|
Inlet water TDS |
<45000ppm |
Freshwater TDS |
<600ppm |
|
Design pressure |
1000PSI |
Working pressure |
≤850PSI |
|
Inlet water residual chlorine |
<0.1ppm |
Inlet water SDI |
<5 |
|
Inlet water turbidity |
<1 |
Inlet water PH |
Neutral |
|
Equipment specification |
92X95X145(cm) |
Equipment net weight |
220Kg |
|
Packing specification |
104X100X154(cm) |
Packing gross weight |
280Kg |
Note:
* is based on the below testing conditions: 32000ppm NaCl, 800psi (5.5MPa), 77°F (25℃), PH is 8, less than relevant recovery rate (variation range no more than -15%);
* Based on the below reasons: different seawater quality in every place, bad seawater quality and bad equipment usage environment, complicated seawater composition, we suggest customer to use “suggested flux”, which can protect the equipment service life;

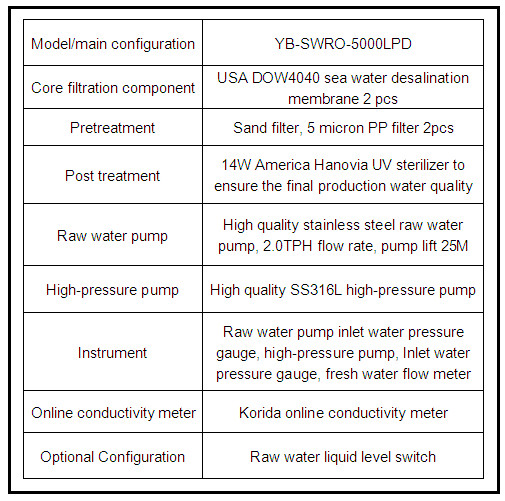

YB-SWRO-5000LPD portable seawater desalination machine Main configuration
Consumable replacement cycle：
1. Quartz sand: about one year
2. 5 micron PP filter : about 3 months
3. USA DOW RO membrane: about 3 years
