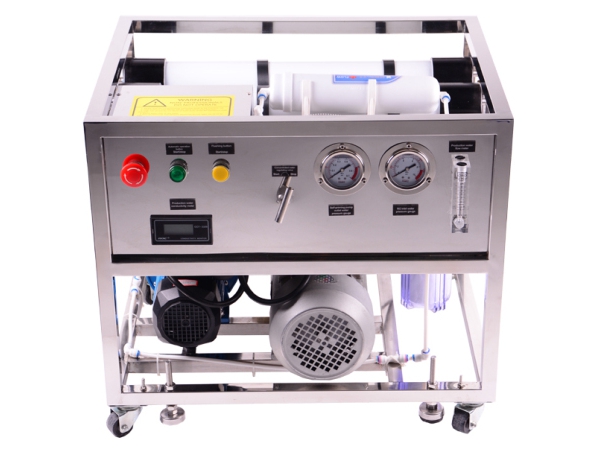

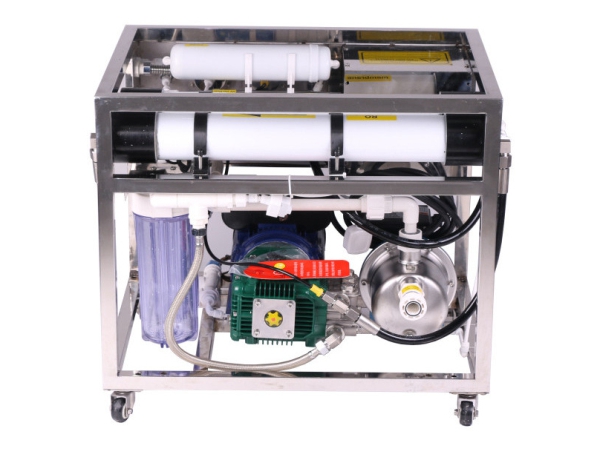

Portable seawater desalination machine

< >

1000L/D Portable RO Water Maker For Seaside Villa drinking water

YB-SWRO-1000LPD
*Testing flow rate	80L/H	Recovery rate	8%
*Suggested to use flow rate	50L/H	Power	1.9KW
Voltage	220V 50HZ	Working temperature	5-45℃
Inlet water TDS	<45000ppm	Freshwater TDS	<600ppm
Design pressure	1000PSI	Working pressure	≤850PSI
Inlet water residual chlorine	<0.1ppm	Inlet water SDI	<5
Inlet water turbidity	<1	Inlet water PH	Neutral
Machine net size	645055 (cm)	Machine net weight	70KG

YOUBER Portable Seawater Desalination Machine Product Introduction

1. As the content of salt in the seawater is too high, that can not be used directly, there are mainly two methods to desalinate seawater, distillation and reverse osmosis. Distillation is mainly used for super-huge type seawater desalination and heat energy rich area, energy consumption is very high. Reverse Osmosis is very widely applicable, low energy consumption and high desalination rate, so it‘s widely used.

2. We use the international best quality of seawater RO membrane. The membrane‘s salt removing rate is very high, with stable performance, safe and reliable. The HP pump we used is the international brand which is specialized in seawater desalination. The treated water quality meets the national life drinking water quality standards (GB5749-85), do not add any chemicals, can be used for direct drinking, fresh and sweet.

3. For the portable use, reliable water, cheap price etc., after a long time of design and practice, we integrate the reliable technology and advanced technology, make our equipment stand out! From here on, you will experience the different use feelings!

YB-SWRO-1000LPD Portable Seawater Desalination Machine Advantages & Characteristics

In addition to the above advantages, YOUBER portable Seawater desalination machine also has below characteristics:

1. YB series portable seawater desalination machine, volume 64cm L * 50cm W * 50cm H, only weight 70KG, moveable design, easy to move and assemble.
2. YB series portable seawater desalination machine has most matching accessories, can directly use after connect with water and power, easy operation.
3. YB series portable seawater desalination machine has a wide range of power supply, can be connected with common household AC power, gasoline/diesel generator, also can be connected with solar and wind etc. environmental energy.
4. YB series portable seawater desalination machine also has modern design and high integration etc. characteristics.

YOUBER Portable Seawater Desalination Machine Process Flow

YB-SWRO-1000LPD Portable Seawater Desalination Machine Technical Parameter

YB-SWRO-1000LPD
*Testing flow rate	80L/H	Recovery rate	8%
*Suggested to use flow rate	50L/H	Power	1.9KW
Voltage	AC220V50HZ	Working temperature	5-45℃
Inlet water TDS	<45000ppm	Freshwater TDS	<600ppm
Design pressure	1000PSI	Working pressure	≤850PSI
Inlet water residual chlorine	<0.1ppm	Inlet water SDI	<5
Inlet water turbidity	<1	Inlet water PH	Neutral
Machine net size	645055 (cm)	Machine net weight	70KG
Machine packing size	756079 (cm)	Machine packing gross weight	90KG

Note:
* is based on the below testing conditions: 32000ppm NaCl, 800psi (5.5MPa), 77°F (25℃), PH is 8, less than relevant recovery rate (variation range no more than -15%);
* Based on the below reasons: different seawater quality in every place, bad seawater quality and bad equipment usage environment, complicated seawater composition, we suggest customer to use “suggested flux”, which can protect the equipment service life;

YB-SWRO-1000LPD Portable Seawater Desalination Machine Main configuration

Model/main configuration	YB-SWRO-1000LPD
Core filtration component	USA DOW 2521 sea water desalination membrane 2 pcs
Pretreatment	5 micron PP filter and 1 micron pleated filter
Post treatment	10W America Hanovia UV sterilizer and big T33 coconut shell activated carbon
Raw water pump	Lingxiao pump, suction head 6m，1.5TPH flow rate, pump lift 25M
High-pressure pump	stainless steel 316L
Instrument	Raw water pump inlet water pressure gauge, high-pressure pump, Inlet water pressure gauge, fresh water flow meter
Online conductivity meter	Korida online conductivity meter
Optional Configuration	liquid level switch, pressure tank

Consumable replacement cycle：
1.5 micron PP filter and 1micron pleated filter : about 3 months
2.Carbon filter: about 6 months
3.UV lamp: about 9000hours, one year.
4.USA DOW RO membrane: about 3 years
Note：the premise of calculation of above replacement cycle is on the basis of satisfying the use and maintenance condition of this equipment, running 20 hours per day

Portable Seawater Desalination Machine Application Range

1. Can be used for ships, fishing boats, yachts, marine, navy drinking water use

2. Can be used for island family, island restaurant, seaside villa, resort drinking water use.

3. Can be used for salty alkali lake drinking water use.

4. Can be used for desert underground water.

5. Offshore operation platform and floating buildings.

Portable Seawater Desalination Machine CE certificate
