YB-SWRO-5000LPD |
|||
|
*Testing flow rate |
400L/H |
Recovery rate |
15-20% |
|
*Suggested to use flow rate |
250L/H |
Power |
4.6KW |
|
Applicable power |
AC380V 50HZ |
Working temperature |
5-45℃ |
|
Inlet water TDS |
<45000ppm |
Freshwater TDS |
<600ppm |
|
Design pressure |
1000PSI |
Working pressure |
≤850PSI |
|
Inlet water residual chlorine |
<0.1ppm |
Inlet water SDI |
<5 |
|
Inlet water turbidity |
<1 |
Inlet water PH |
Neutral |
|
|
1. Auto operating by pressing one key, easy and convenient to operate. 2. Auto flushing. 3. Touch screen + PLC automatic control, more integrated and convenient, real-time running process, more vivid and visualized. 4. Auto dosing, reducing the fouling of the seawater RO membrane. 5. The machine sets up high and low voltage protection, to prevent the machine from break downing. 6. Device fault alarm and indication is convenient for identifying the causes and maintenance quickly. 7. Kinds of flow and pressure testing instruments, monitoring the device operating state at any time. 8. Online conductivity meter, monitoring the output water quality at any time. |
|
1. Fully polished stainless steel frame, safe and fastness, elegant appearance. 2. 3. High quality quartz sand filter, can remove the large impurities, alga and so on, and can be manual cleaning independently. 4. All of the high pressure fittings adopt SS316 material, safe and corrosion resistant. 5. Low pressure fittings adopt high quality UVPC material. 6. Customized end side port FRP membrane housing, simple connection, safe and reliable. |
|
|
|
1. SEKO dosing pump, accurate dosing, reducing the fouling of the seawater RO membrane Metering pump with the power switch, convenient to start and stop. The power cord and dosing tank’s level signal lines use the navigation plug connection, convenient disassembly of metering pump. 2. High quality SS316L high pressure pump, safe and corrosion resistant, running more stable. |
|
1. Cartridge filter protect RO membrane, prolong RO membrane‘s service life. 2. High quality stainless steel raw water pump. 3. Final Production water of ultraviolet disinfection online to ensure the output water quality. 4. High quality SS316L electric slowly open valve, slow opening and closing device high pressure. 5. Universal wheel and adjusting legs make the machine move easier and portable, and is suitable for installation and use under more conditions. |
|
1. Can be used for ships, fishing boats, yachts, marine, navy drinking water use
2. Can be used for island family, island restaurant, seaside villa, resort drinking water use.
3. Can be used for salty alkali lake drinking water use.
4. Can be used for desert underground water.
5. Offshore operation platform and floating buildings.
YOUBER Portable Seawater Desalination Machine Process Flow

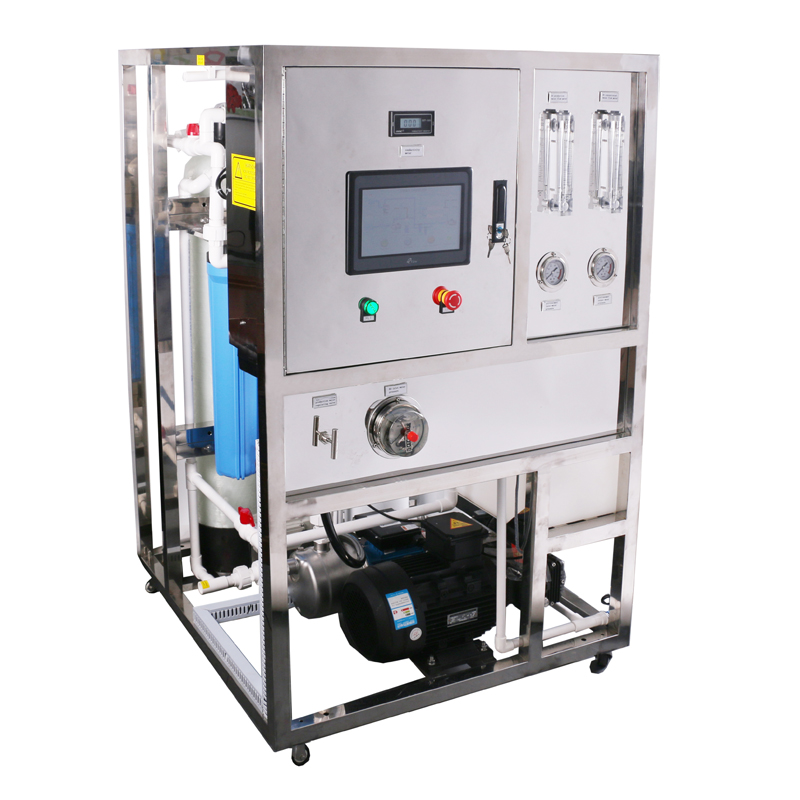

YB-SWRO-5000LPD portable seawater desalination machineMain configuration
Consumable replacement cycle：
1. Quartz sand: about one year
2. 5 micron PP filter : about 3 months
3. USA DOW RO membrane: about 3 years
Note：the premise of calculation of above replacement cycle is on the basis of satisfying the use and maintenance condition of this equipment, running 20 hours per day
Portable Seawater Desalination Machine CE certificate
